Computer Assembly - How To Assemble A PC
Connect The System Panel Cables

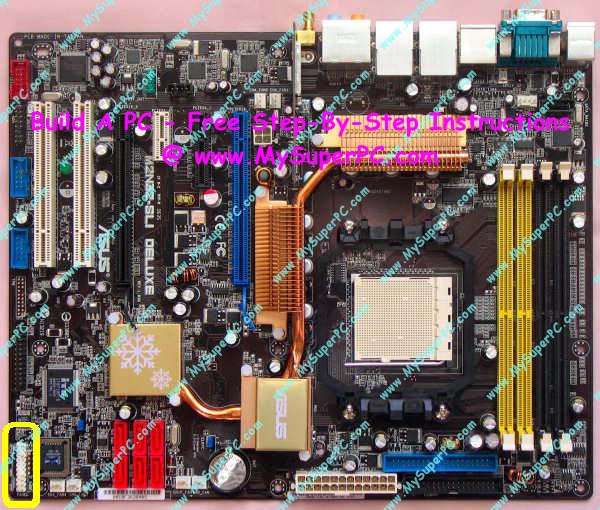

The computer case provides system panel cables that need to be connected to the system panel connectors on the motherboard. These cables make a connection between the computer case and the computer (via the motherboard). It is these cables that allow the power and reset buttons on the front of the case to work, the LEDs (one indicating the computer has power, the other indicating the hard drive is being accessed) on the front of the case to work, and the built-in speaker to work. The system panel connectors are located on the ASUS M2N32-SLI Deluxe Wireless Edition motherboard as shown circled in yellow in the lower-left corner.

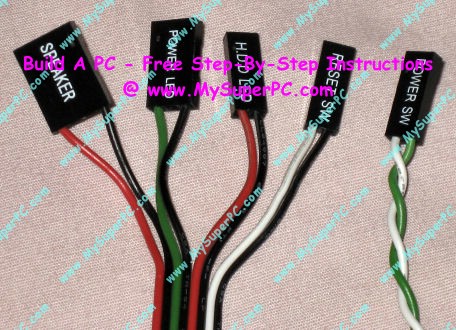

As can be seen in the picture below, there are five system panel cables that need to be connected into specific pin positions of the system panel connectors. The motherboard manual should be consulted for detailed information regarding the system panel connectors. The nasty thing about these cables is that they are not keyed, so they can be plugged in the wrong way around or on the wrong set of pins. The cables are SPEAKER (for the internal speaker - the one that just goes "beep"), POWER LED (for the LED on the front of the computer case), HDD LED (for the LED on the front of computer case that lights whenever the hard drive is accessed), RESET SW (for the reset button on the front of the computer case), and POWER SW (for the power button on the front of the computer case).
It's a bit tedious to plug each individual system panel cable onto its appropriate system panel connector pins. Many motherboards, including the ASUS M2N32-SLI Deluxe Wireless edition motherboard that I'm using, include a Q-connector to make the job a bit easier. The system panel cables are connected to the Q-connector, and then the Q-connector with all the cables is plugged into the system panel connector on the motherboard. The Q-connector looks like this.
Notice each cable has two wires. The black wire or white wire is ground and the colored wire is power. All the cables have one black wire and one colored wire - except for the RESET SW cable. It also has two wires, one black and one white, but no colored wire. Well, more about that in a moment.
The motherboard manual will indicate which system panel connector pins are for each system panel cable, and will also indicate which pin is the pin for ground and power. The motherboard manual may describe the pin with ground as the "pull down", such as "Hard Disk LED pull-down" for the motherboard header HDD LED pins. Similarly, the pin with power may be described as the "pull-up", such as the "Hard Disk LED pull-up".
As it turns out, only the LED's are a problem if their cables are connected the wrong way around. The LED's are diodes, so they have polarity. If you have an LED cable on the right pins, but the wrong way around, then the LED won't light up. It won't hurt anything, though. For the LED to work, line up the black wire on the cable connector with the motherboard header pin identified as ground (GND, or pull-down). Two of the cables are for LED's, the POWER LED cable and the HDD LED cable.
The other three cables, POWER SW, SPEAKER and RESET SW, can be connected either way. The motherboard manual may still identify one of the motherboard header pins for the connector as ground, but it will still work whether or not it is the black, ground wire that is connected to it. I have verified this for myself. The power switch, reset switch, and speaker all worked with their corresponding cables connected either way. And I also verified that the LEDs do not work when their cables are connected the wrong way around. So for the RESET SW cable in particular, which has one black wire and one white wire, it doesn't really matter which one is ground. It has no polarity so it doesn't matter which way it is connected.
Knowing all this is quite a bit helpful. It means that if you at least get the cables on the right pins then that will be sufficient. Only the two cables for the LEDs could be the wrong way around, and that won't hurt anything. It just means the LED's won't work until the cable is turned around.

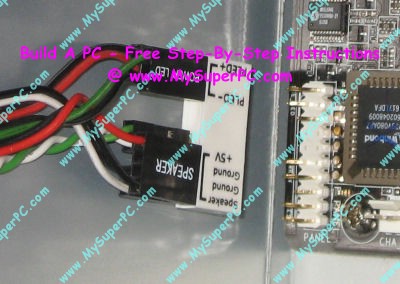

Here are the five cables connected into the Q-connector.

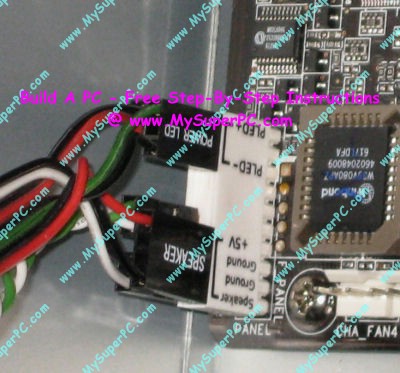

Plug the Q-connector into the system panel connector. When using the Q-connector, the connection is keyed because the Q-connector has pin holes blocked (as can be seen in the previous pair of pictures) where the ASUS M2N32-SLI Deluxe Wireless Edition motherboard is missing system panel connector pins.

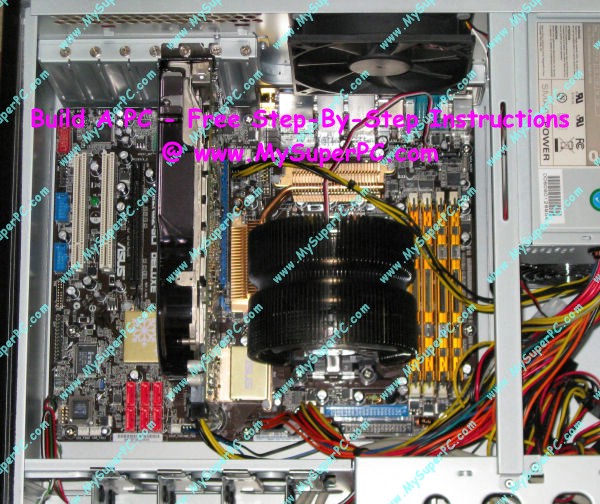

And here's how the computer looks assembled thus far. Everything we want installed inside of the computer for the first boot is in place.
