Install The SATA Hard Drive

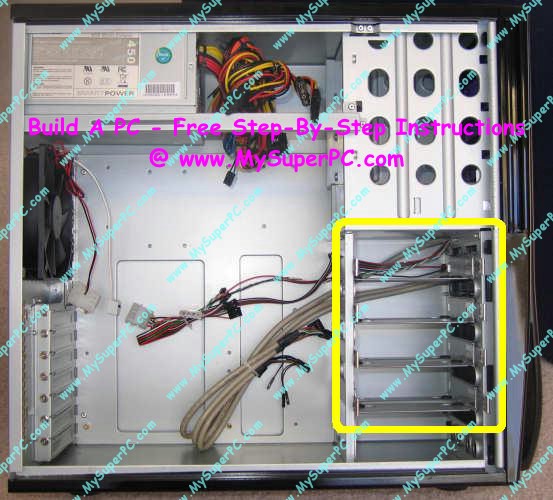

The Antec Sonata II computer case has room for four internal 3.5 inch internal hard drives. The bays for the drives are located as shown circled in blue.
How To Assemble A Computer - PC Assembly Guide, How To Assemble A Computer - PC Assembly Guide, Antec Sonata II Internal Hard Drive Bays

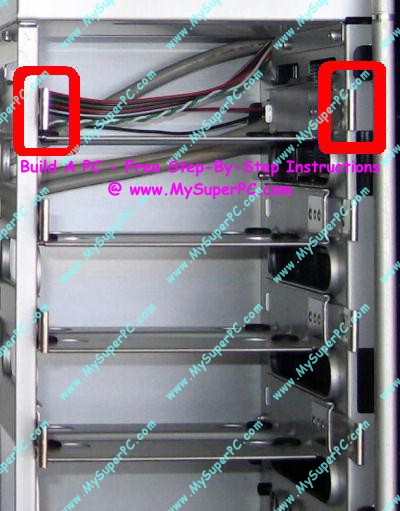

Here is a closer view of the bays. The locking clips are shown circled in red. Remove one of the drive trays by squeezing the two locking clips together and sliding the tray out.
How To Assemble A Computer - PC Assembly Guide, How To Assemble A Computer - PC Assembly Guide, Antec Sonata II Internal Hard Drive Bay Clips

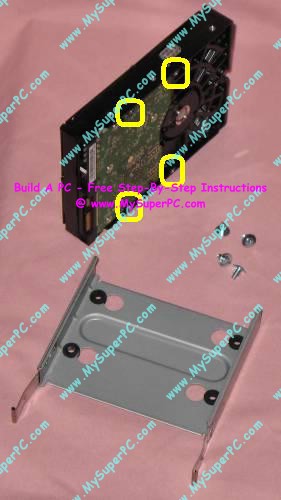

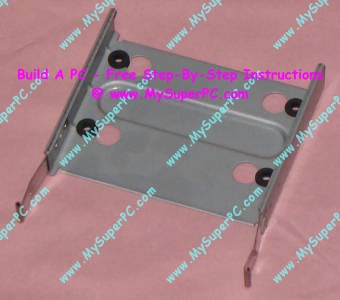

The hard drive fastens to the tray at the black rubber washers. The rubber washers help keep the computer quiet by dampening the hard drive vibration. Use four of the hard drive mounting screws that came with the Antec Sonata II computer case, as shown in the lower left of the second picture.
How To Assemble A Computer - PC Assembly Guide, How To Assemble A Computer - PC Assembly Guide, Antec Sonata II Internal Hard Drive Tray How To Assemble A Computer - PC Assembly Guide, Antec Sonata II computer case screws and motherboard mounting posts
The tray attaches to the hard drive through the bottom of the tray. The screws are inserted through the bottom of the tray through the black rubber washers and into the hard drive. The hard drive holes for the screws are on the bottom of the hard drive and are circled in yellow in the picture below.
How To Assemble A Computer - PC Assembly Guide, How To Assemble A Computer - PC Assembly Guide, Antec Sonata II Internal Hard Drive Tray With Hard Drive and Mounting Screws

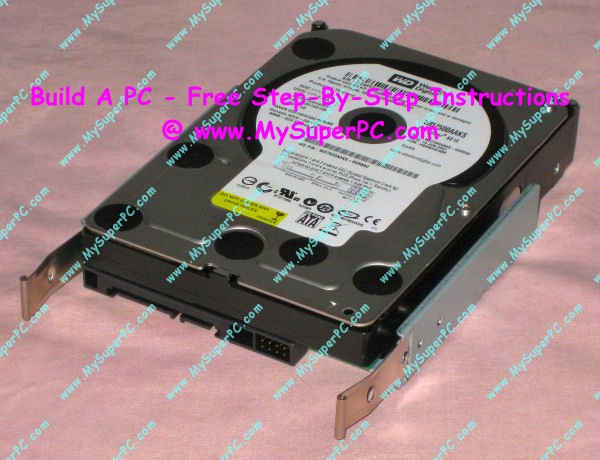

The tray can be attached the other way around, so the rear of the hard drive faces away in the picture. The advantage with doing it as shown is that the connectors on the rear on the drive are easy to access once the hard drive tray is reinserted back into the bay. There is an advantage to doing it the other way, too, which is that the cables run much less cluttered if they connect on the far side of the drive. You'll see what I mean more clearly shortly when the drive tray is reinserted back into the computer. Either way you do it is fine, just personal preference.
How To Assemble A Computer - PC Assembly Guide, How To Assemble A Computer - PC Assembly Guide, Antec Sonata II Internal Hard Drive Tray with SATA Hard Drive Mounted
Slide the hard drive tray back into the bay until it clicks into place.
How To Assemble A Computer - PC Assembly Guide, How To Assemble A Computer - PC Assembly Guide, Antec Sonata II With Hard Drive In 3.5 Inch Bay

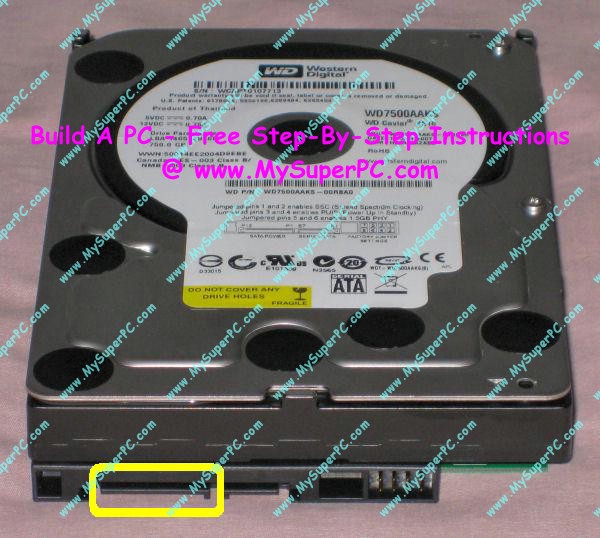

The connector circled in yellow is the SATA hard drive power receptacle for the power connector.
How To Assemble A Computer - PC Assembly Guide, How To Assemble A Computer - PC Assembly Guide, Western Digital Caviar SE 750GB WD7500JD SATA Hard Drive Power Connection
The connector circled in red is the connector for the SATA cable.
How To Assemble A Computer - PC Assembly Guide, How To Assemble A Computer - PC Assembly Guide, Western Digital Caviar SE 750GB WD7500JD SATA Hard Drive Cable Connection

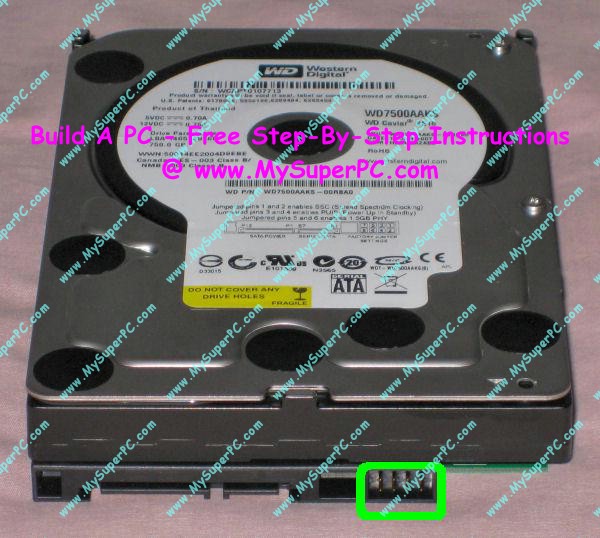

Circled in green is the jumper pins. No jumper is needed to change the hard drive configuration.
How To Assemble A Computer - PC Assembly Guide, How To Assemble A Computer - PC Assembly Guide, Western Digital Caviar SE 750GB WD7500JD SATA Hard Drive Jumpers

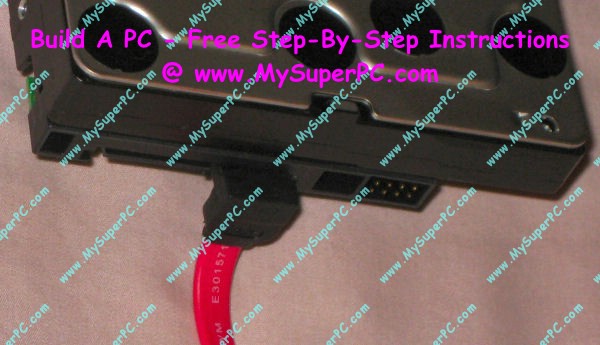

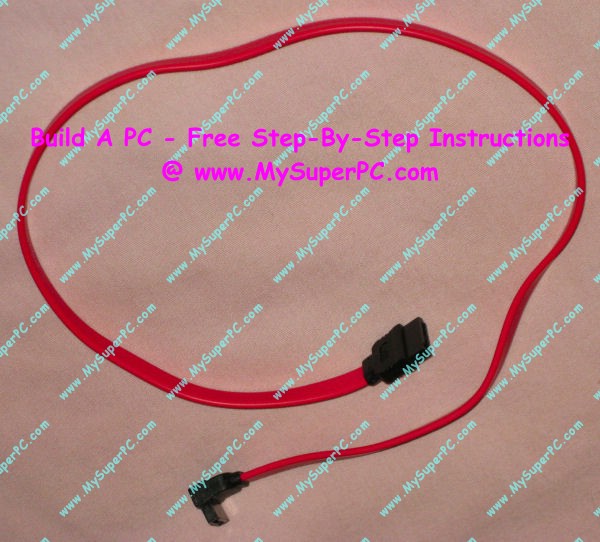

The ASUS M2N32-SLI Deluxe Wireless Edition motherboard comes with SATA cables like the one shown below in the first picture. Plug one end of the cable - it doesn't matter which end, but a right-angle end works well on the back of the hard drive - into the back of the SATA hard drive at the connector circled in red in the previous picture. The connector is keyed so it can only be plugged in one way.
How To Assemble A Computer - PC Assembly Guide, SATA Hard Drive Cable
How To Assemble A Computer - PC Assembly Guide, SATA Hard Drive Cable Connection

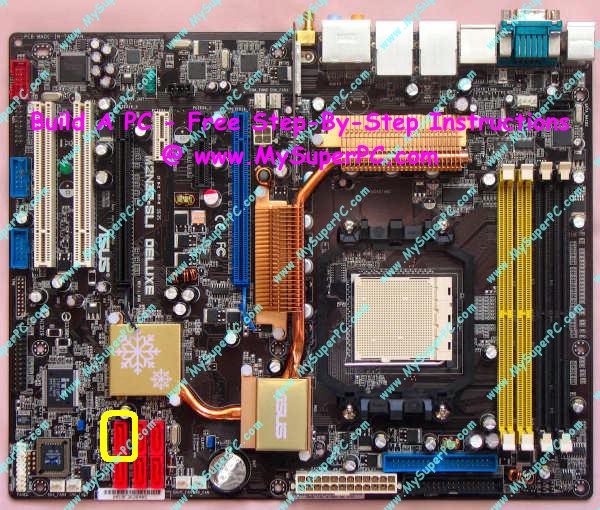

There are six SATA connectors on the ASUS M2N32-SLI Deluxe Wireless Edition motherboard. The first one, the SATA 1 header, is shown circled in yellow.
How To Assemble A Computer - PC Assembly Guide, How To Assemble A Computer - PC Assembly Guide, ASUS M2N32-SLI Deluxe Wireless Edition Motherboard with SATA 1 Header Circled

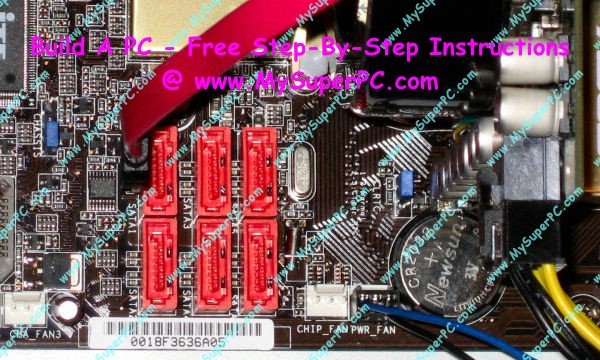

Plug the other end of the SATA cable into the motherboard SATA 1 header. The connection is keyed so it can be plugged in only one way.
How To Assemble A Computer - PC Assembly Guide, How To Assemble A Computer - PC Assembly Guide, ASUS M2N32-SLI Deluxe Wireless Edition Motherboard SATA1 Connector and SATA Cable

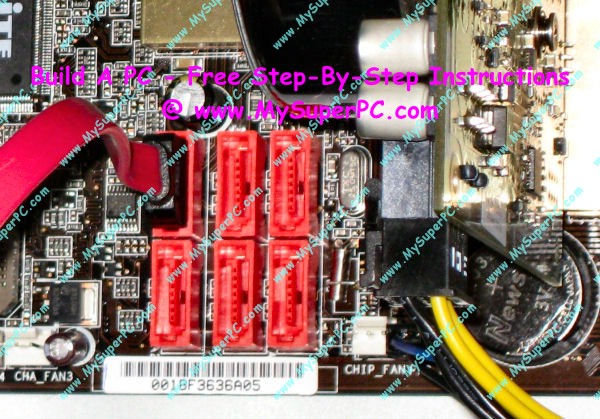

Like so.
How To Assemble A Computer - PC Assembly Guide, How To Assemble A Computer - PC Assembly Guide, ASUS M2N32-SLI Deluxe Wireless Edition Motherboard SATA1 Connector and SATA Cable Connected
Select a SATA power connector from the bundle of power connectors coming out of the power supply like the one shown. The power connector is also keyed so it can only plug in one way. Notice the power cord can be used to power up to two SATA hard drives since it has two power connectors, one on the end of the cord and one partway back on the cord.
How To Assemble A Computer - PC Assembly Guide, Power Supply SATA Power Connection for SATA Hard Drive

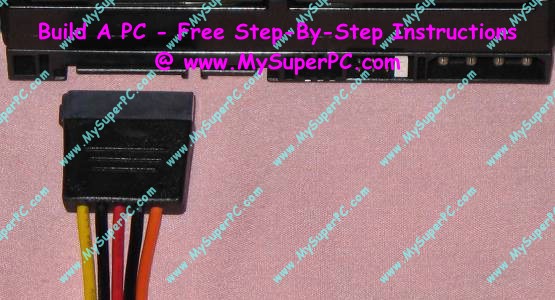

Plug the SATA power connector into the back of the SATA hard drive.
How To Assemble A Computer - PC Assembly Guide, SATA hard drive power connection

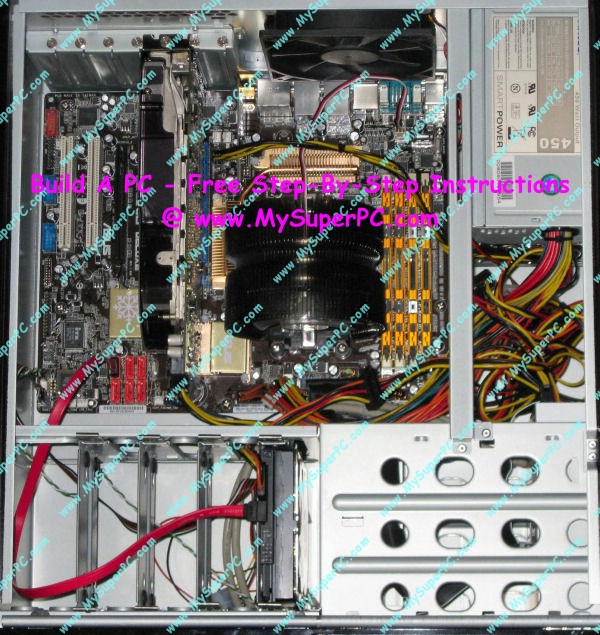

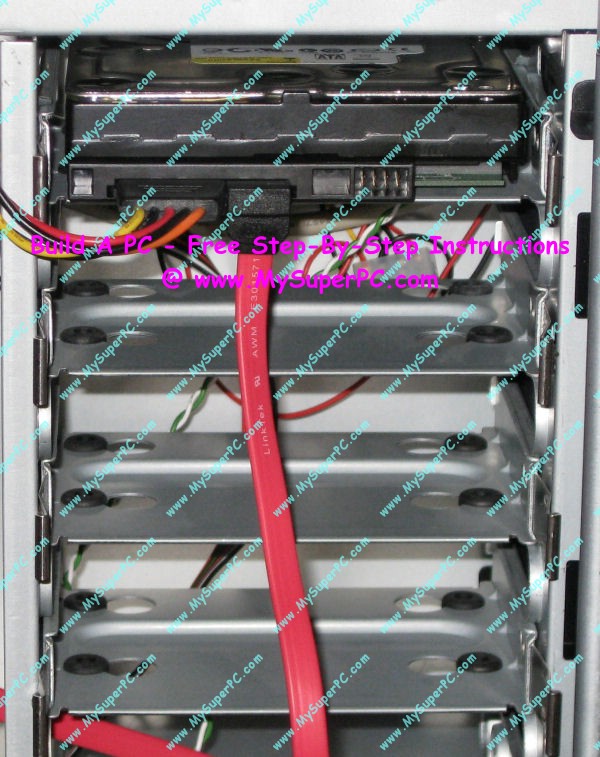

The back of the SATA hard drive now looks like this inside the computer case with these two connections made to the back of the drive.
How To Assemble A Computer - PC Assembly Guide, SATA Hard Drive Installed Into 3.5 Inch Internal Drive Bay and Connected, View From Inside Computer Case
And here's how the interior of the computer case looks with these connections made and with the DVD RW optical drive and SATA hard drive installed. Things are starting to get a bit cluttered inside, aren't they? One thing to be mindful of is that data cables and power cables should be run in such a way as to minimize how much they interfere with airflow inside the case. This I've done with the ribbon cable for the DVD RW drive in particular. The cables for the other drives are much narrower and are much less of a concern in how they affect airflow.
How To Assemble A Computer - PC Assembly Guide, Antec Sonata II With DVD RW Optical Drive and SATA Hard Drive Installed
