Ready The Monitor

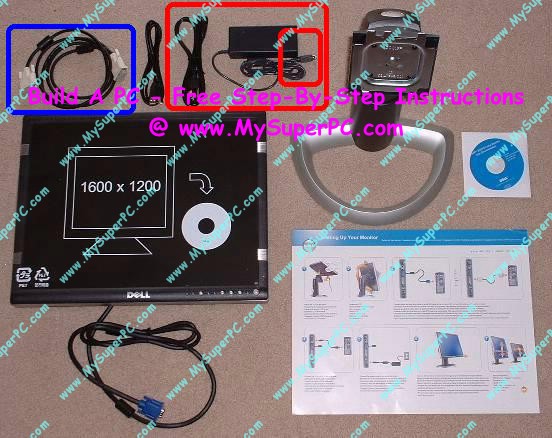

The Dell flat panel monitor comes out of the box like this. I've circled the DVI cable in the upper-left in blue and the power cable next to it in red since I'll be referring to those next.
How To Assemble A Computer - PC Assembly Guide, Dell 2001FP Flat Panel LCD Monitor box contents

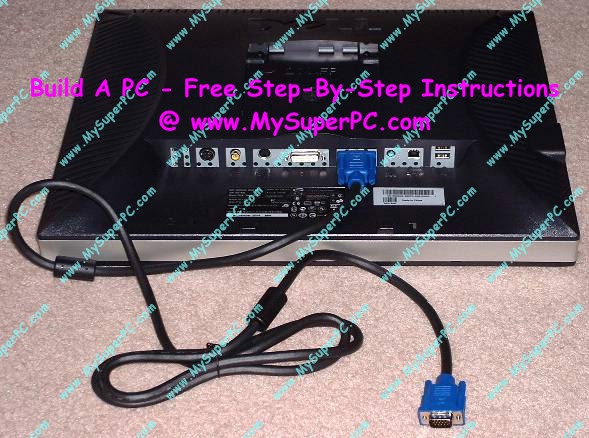

Most of the connectors on the Dell 2001FP flat panel can be seen by laying the flat panel face down as shown in this picture. The flat panel comes out of the box with the blue video cable connected. While this will work and is a standard connection supported by any video card, it will not deliver the video quality that was the purpose of getting a flat panel monitor in the first place. A flat panel should be used with the white DVI cable for best viewing quality.
How To Assemble A Computer - PC Assembly Guide, Dell 2001FP Flat Panel LCD Monitor box contents

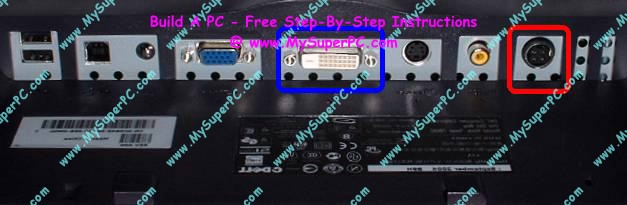

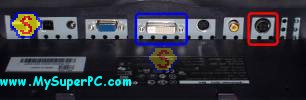

Here's a closer look at the connectors. The blue video cable has been unplugged since I'm using the DVI connector. The DVI cable is shown circled in blue in the picture at the top of the page. Each end of the DVI cable has a gray plastic protector over the pins and these should be removed. Plug the DVI cable into the DVI connector shown circled in blue near the center in the picture below. The pins of the DVI cable are keyed with the DVI connector so it can only be plugged in one way, and it doesn't matter which end of the DVI cable is connected to the monitor. Next plug the power cord, shown circled in red in the picture at the top of the page, into the power connector shown circled in red near the right in the picture below. The power cord is also keyed so that it can only be plugged in one way. The power cabling for the flat panel is in two parts counting the power cord that connects from the wall outlet to the power adapter as one part and the power adapter with it's cable to the monitor as the second part. Both these parts are included in the outer red circle above, with the inner red circle showing the plug that connects to the monitor.
How To Assemble A Computer - PC Assembly Guide, Dell 2001FP Flat Panel LCD Monitor Connectors

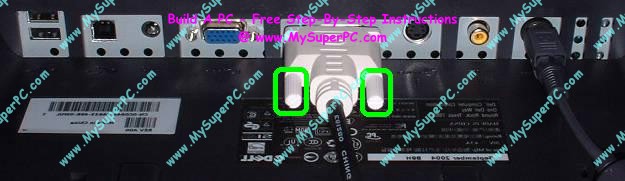

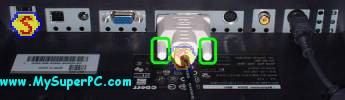

With these connections made, it looks like this. The DVI cable can be tightened into place so it doesn't work lose using the screws built into the cable shown circled in green.
How To Assemble A Computer - PC Assembly Guide, Dell 2001FP Flat Panel LCD Monitor Connectors
Mount the flat panel onto the stand, making sure it clicks and locks into place, and it's ready to go. The height and tilt of the flat panel is adjustable.
How To Assemble A Computer - PC Assembly Guide, Dell 2001FP Flat Panel LCD Monitor Assembled
